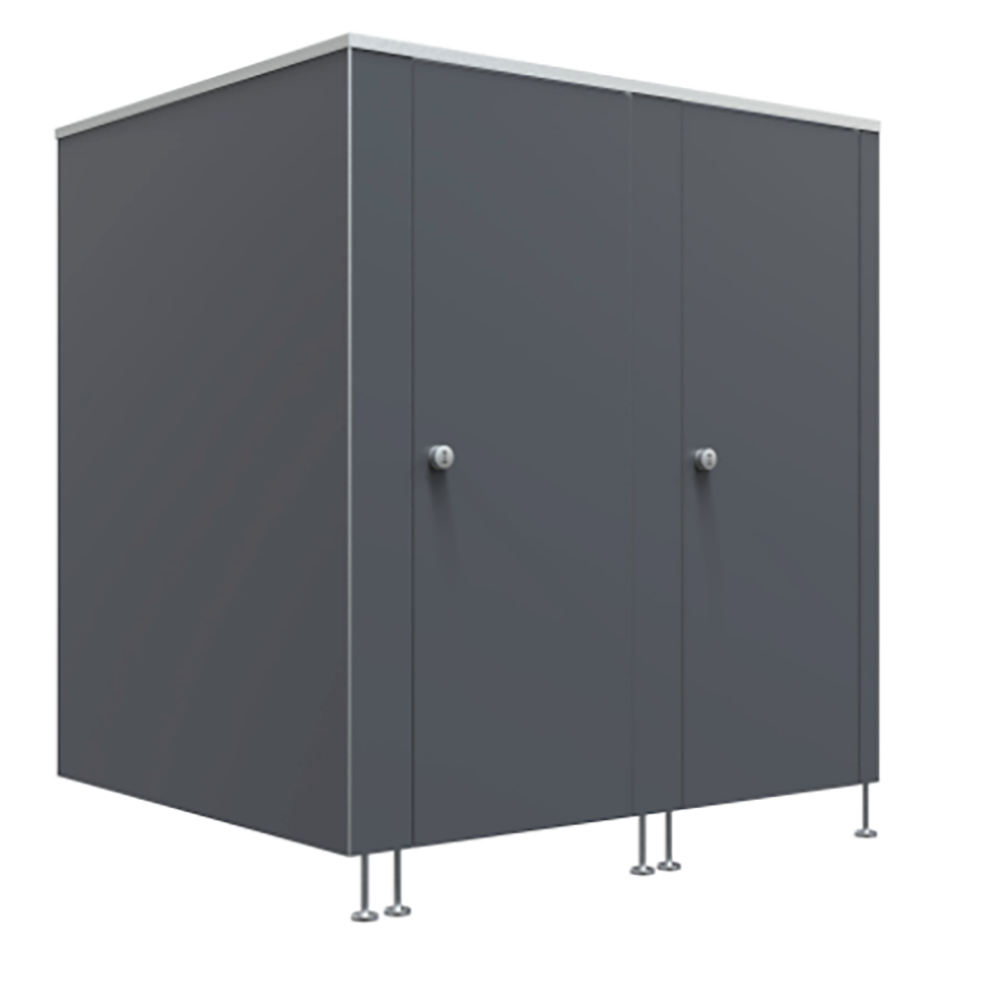

The Loft series partitions set the standard for Euro-style partitions. Outstanding design, seamless construction with no visible gaps, and unmatched strength make these partitions ideal for any commercial restroom. Frameless construction with no visible hardware creates a streamlined, fresh look.

• Robust and durable
• Lightweight, designed for an easier install
• Flush surface construction
• Frameless construction with no visible hardware
• Maintenance-free, 110° pivot slow-close hinge (with finger protection)
• Exclusive new Phenolic LT material
• Available in a range of standard and custom colors

Construction

Solid "sandwich‑type" construction 1.4 inches (36 mm) thick with a 0.1‑inch (3 mm) solid grade face sheet laminate on both sides with a moisture‑resistant, double‑sided, hexacomb cardboard core and aluminum framing around the edges.

Phenolic LT materials are impact and scratch resistant. Anti‑bacterial coating and non‑porous surface reduce spread of germs.

Panels & Doors

Panels are 1.4 inches (36 mm) thick, constructed from 1/8‑inch phenolic face sheets and are encased in an aluminum profile.

Doors are 1.4 inches (36 mm) thick, constructed from 1/8‑inch phenolic face sheets and are encased in an aluminum profile. Interior rebated door catcher is flush integrated into the wall section. Integrated rubber bumper included for silent operation.

Pilasters

Pilaster are 1.4 inches (36 mm) thick, constructed from 1/8‑inch phenolic face sheets and are encased in an aluminum profile.

Door Hardware

Self‑closing doors with two aluminum gravity hinges for a maximum door opening of 110° (in‑swing doors). The 110° self‑closing hinge is hidden in the structure of the door. Out‑swing doors are equipped with 180° self‑closing barrel hinge. All doors are provided with an individual coat hook and door bumper. Stainless steel door knob has an easy‑to‑maneuver paddle built into the locking wheel on the inside. A white/red indication latch and emergency unlocking feature is integrated on the outside of the door knob. The emergency release uses a 4 mm (5/32 inch) allen key that is inserted into the center of the door knob from the outside to unlock the door.

Brackets

Continuous U‑brackets are provided.

Feet

Feet are constructed of stainless steel.

Height

Standard height of 81.9 inches (2080 mm) including the 3.9‑inch (100 mm) floor clearance.

Headrail

A 1.2‑inch (30 mm) x 1.2‑inch (30 mm) aluminum headrail. Sits flush on top of the pilaster and door.
